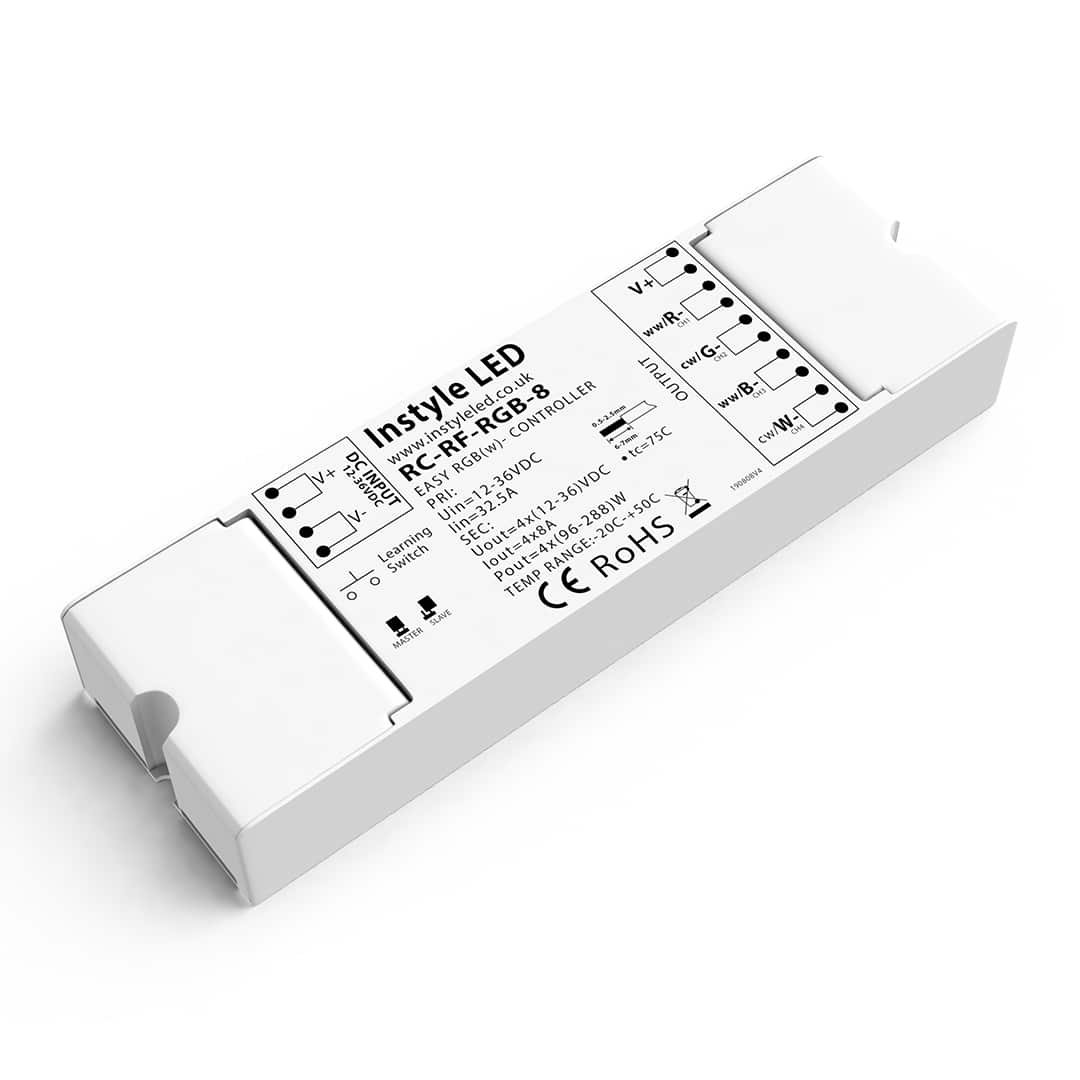

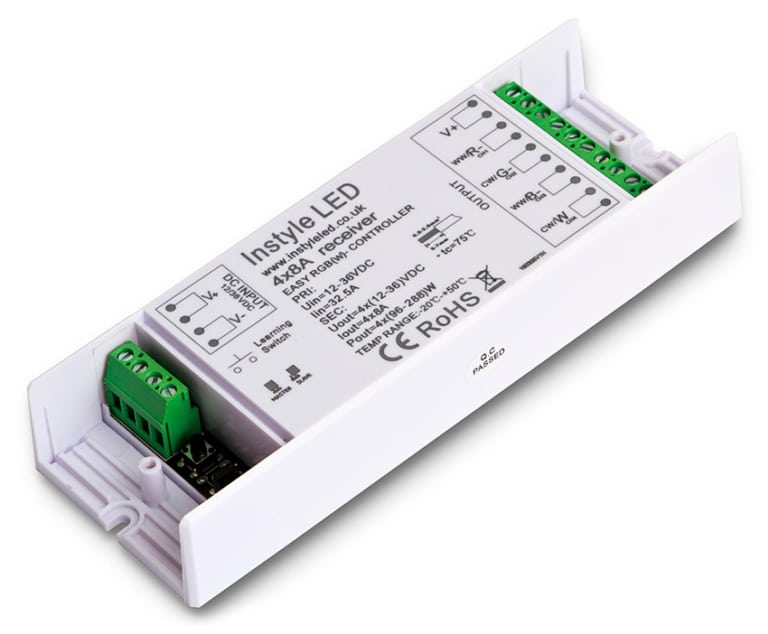

4-Channel LED Receiver (8 Amp)

For wireless dimmers/controllers (RF with wifi option) Works with RGB & RGBW LED tape

Availability : In stock for next day delivery

Request A Quote

Input Voltage: DC, +12~24V
Length: 170mm
Width: 58mm
Depth: 30mm
Output Per Channel: 96 watts (24V), 192 Watts (24V)

Product Description

With 4 channels, INSTYLE LED’s RF multizone receiver is ideal if you intend to install any of our multizone RGB controllers or multizone (white or single-colour) dimmers. It can work with 12v or 24v, and outputs a massive 4 x 8amps (up to 192w per channel). Read more.

Features

Commercial Grade Multichannel Receiver
Ideal for internal use
4 channels – 96W each (12V), 192W each (24V)

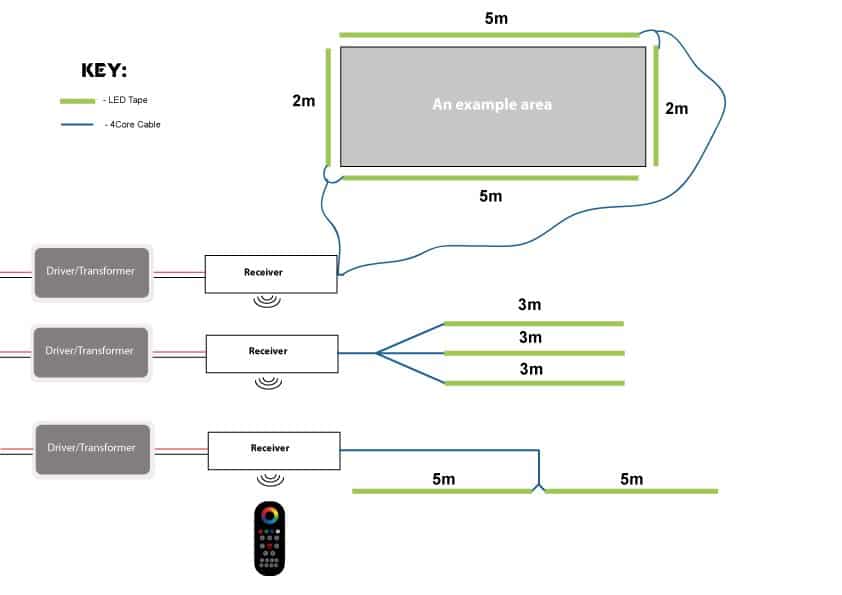

You can set multiple receiver units to a single zone, or they can be set independently to different controller zones – up to a range of 20m. Simply press the receiver’s button to synchronise with your controller.

Our multizone receiver works with RGB and RGBW LED tape, and offers the option of WiFi. Using WiFi, you don’t even need a controller – you can set your lighting through an app on your phone or tablet!

To learn more about the controllers with which this multizone receiver is compatible, you can click on the gallery images below.

RC-RF-RGB-8
