Wireless controller & dimmer

Suitable for white & single-colour LEDs 20m range, No ‘Line of Sight’ needed

Availability : In stock for next day delivery

Request A Quote
  • Input Voltage: DC12~DC24
  • Length: 120mm
  • Width: 48mm
  • Depth: 18mm
  • Radio Frequency: 434MHz/868MHz
  • CE + RoHS Certificated: Yes

Product Description

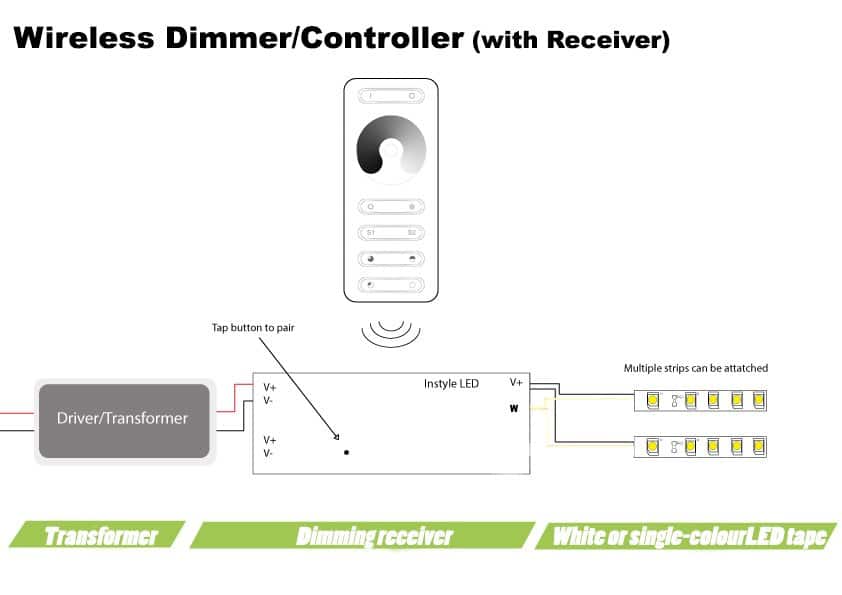

This handy wireless dimmer/controller for INSTYLE LEDs is a complete receiver and controller kit in a box. When it’s installed with a suitable transformer, the two units will give you full control over your white or single-colour LED tapes. Read more.

Features

  • Remembers the last setting when powered on/off (even by the mains 240v)
  • Touch screen with brightness wheel – full 100% dimming
  • High power receiver 1 x 8amp (up to 96w on 12v / up to 192w on 24v)
  • Radio remote doesn’t need to be ‘line of site’ with receiver
  • Remote works up to 20m away from receiver
  • Easy to install
  • Store/recall favourite light levels
  • Ideal for any 12v/24v white LED products, such as LED strips / Downlights / Wall washers
  • You can have several receivers all controlled from 1 remote
  • You can wire multiple strips back to one receiver
The ‘touch’ wireless remote offers full dimming and on/off control via its easy-to-use brightness wheel. There are also four preset shortcut keys (100%, 75%, 50% and 25% brightness), and you can also store/recall two of your own favourite lighting levels. The wireless remote is an RF (radio frequency) controller, which can control your LED tape up to 20m away via its receiver. There’s no need to be ‘line of sight’, so the receiver can be tucked away in a cupboard or behind a wall etc.

The controller can support a total of 10A. Allowing for headroom, we recommend that the receiver can control the following lengths of LED tape:

12v white LED tape 4.8W (feature lights / highlighting) = 24m
24v white LED tape 12W (standard domestic lighting) = 16m
24v single-colour LED tape 14.4W = 12m
This INSTYLE wireless controller for white and single-colour LED tape is commercial grade, manufactured using premium components. It’s ideal for homes, bars, restaurants and small clubs.

CT-RW-1
Wireless Remote Dimmer/Controller BrandedPDFWireless Remote Dimmer/Controller Branded
