1 Zone Controller

Wireless CCT controller

20m range, No ‘Line of Sight’ needed

Availability : In stock for next day delivery

Request A Quote
  • Input Voltage: DC12~DC24
  • Dimensions: 122mm x 48mm x 18mm
  • Radio Frequency: 434MHz/868MHz
  • CE + RoHS Certificated: Yes

Product Description

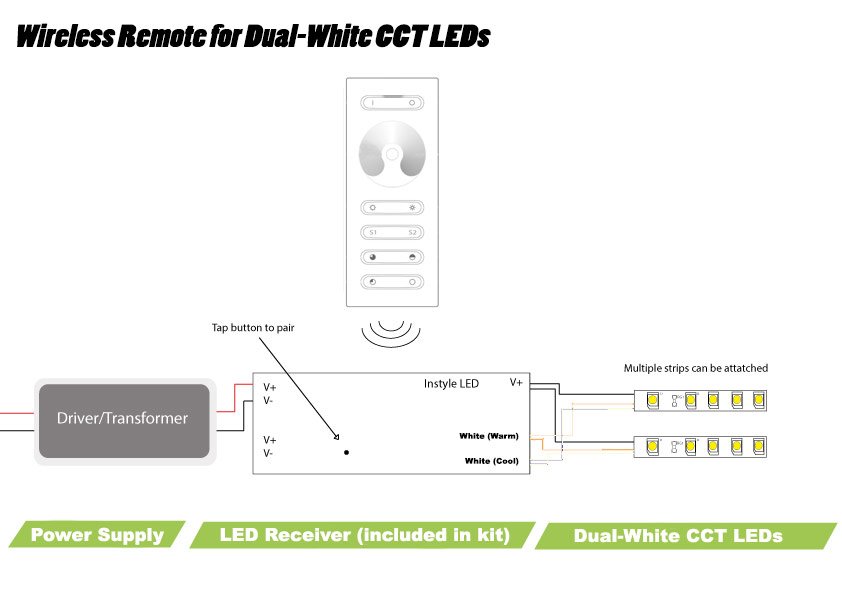

When you buy this remote controller for dual-white CCT LEDs, we’ll supply you with a complete receiver and controller kit. Installed together with a suitable transformer, these two units will give you full control over your dual-white LED tape. Read more.

Features

  • Remembers the last setting when powered on/off (even by the mains 240v)
  • Touch screen with colour wheel allowing choosing any shade of white light
  • Ideal for any 12v/24v Dual white LED products, such as LED strips / Downlights / Wall washers
  • HIgh power receiver 2 x 5amp (up to 120w on 12v / up to 240w on 24v)
  • Radio remote doesn’t need to be ‘line of site’ with receiver
  • Remote works up to 20m away from receiver
  • 2 scene recall
  • Easy to install
  • Fully dimmable
  • You can have several receivers all controlled from 1 remote
  • You can wire multiple strips back to one receiver
The ‘touch’ wireless remote lets you select any shade of white with its easy-to-use colour wheel. With the two ‘save’ buttons, you can conveniently store/recall two ‘favourite’ white shades for future use. The wireless remote is an RF (radio frequency) controller, which can control your LED tape up to 20m away via its receiver. There’s no need to be ‘line of sight’, so the receiver can be tucked away in a cupboard or behind a wall etc.

The controller can supply up to 10A to your LED tapes (5A per channel). Allowing for headroom, we recommend that the receiver can control up to 20 metres of INSTYLE’s 12-watt CCT LED tape, or 10 metres of 24-watt CCT tape.

This INSTYLE wireless controller for dual-white CCT LEDs is a commercial grade product, manufactured using premium components. It’s ideal for homes, bars, restaurants and small clubs.

CT-RCCT-1
Wireless Remote CCT Control (Single-Zone) BrandedPDFWireless Remote CCT Control (Single-Zone) Branded
