5mm Deep Surface Profile

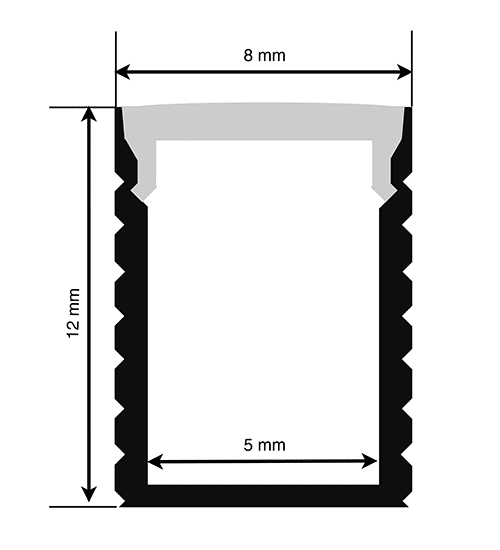

This extrusion is designed to enable installation in very tight locations. Dimensions are 8mm (width) and 12mm (depth). Like other aluminium extrusions, the 5mm deep surface extrusion can be easily cut / trimmed, and lengths can be butted together to give a continuous effect.

The extrusion’s depth, in combination with its frosted acrylic cover, diffuses the spotting effect of individual LEDs to emit a continuous band of light. This makes it ideal for use in highly visible locations.

Advantages of extrusions
Fixing your LED tape into an extrusion can create a more ‘finished’ look when compared to the unhoused PCB – which is ideal if the product is clearly on show. Extrusions can help to prevent contact damage if the LED tape is positioned easily within reach. And even though they are not waterproof, extrusions can help prevent moisture. (To provide more protection against water, consider installing IP67 LED tape in the extrusions.)

Cutting and sizes
Our 5mm deep surface-mount extrusions are available in 1m or 2m lengths as standard. You can simply cut the extrusion the length you require using a hack saw.

Fitting
Extrusions can be fixed into place using countersink screws, straight into the extrusion.

You can find out more about LED profiles on our LED tape extrusions support page.
