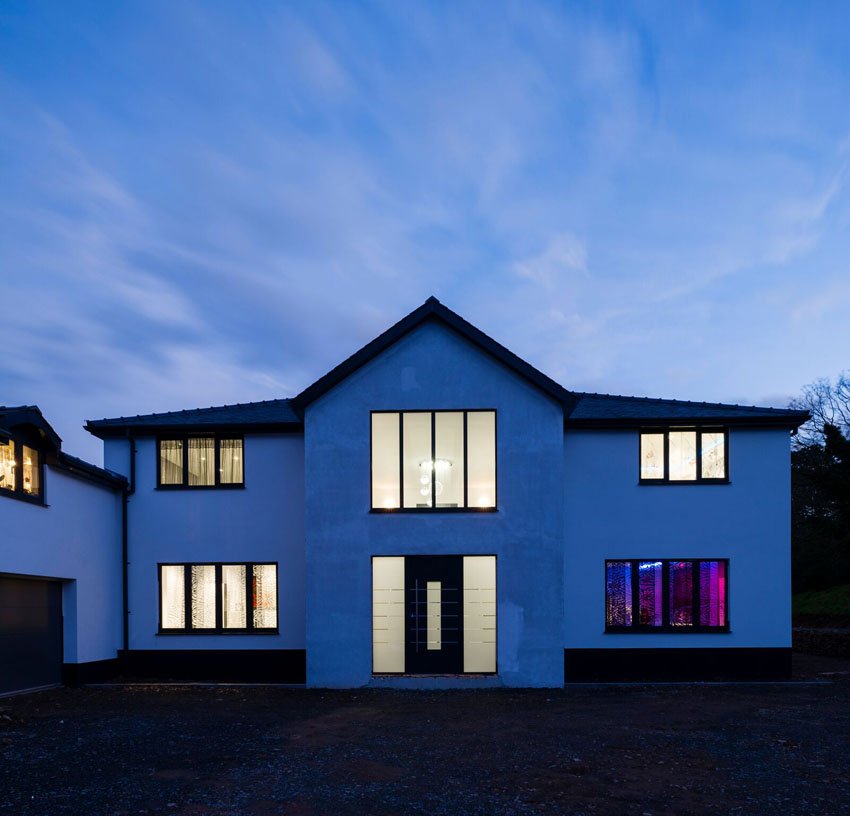

InStyle LED strips add subtle accent lighting to this beautiful contemporary-design home.
Hallway
Accent lights and highlights are just as important as a room’s main lighting… and they open up more creative possibilities too.

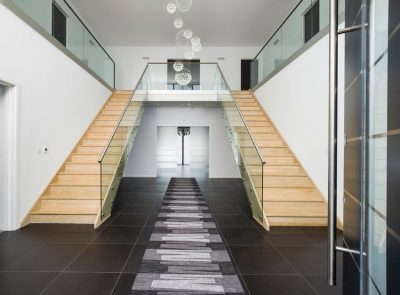

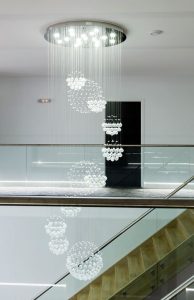

See the low-key light strips at the base of these glass guard panels on the landing, above the house’s striking entrance hall.
Nick, the owner, used 5-watt white LED tape (pure-white option) to add emphasis to the horizontal line of the landing’s floor.
The LED strips are installed in a cut-out run beneath the glass, to throw light upwards. (This is an alternative to using a recessed aluminium LED extrusion.) They’re controlled by three wall-mounted rotary dimmers.

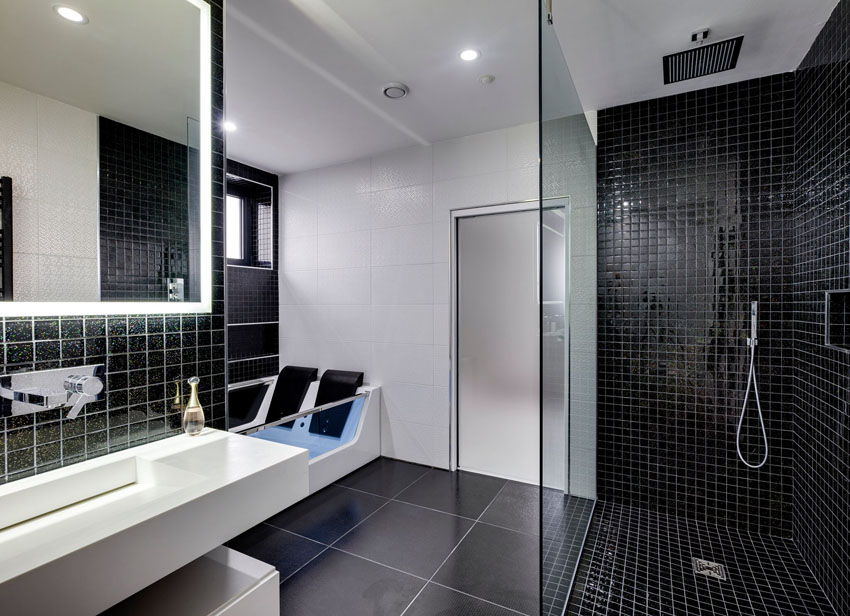

The same LED tape was also used in the bathroom, framing the mirror.
Three Bedrooms

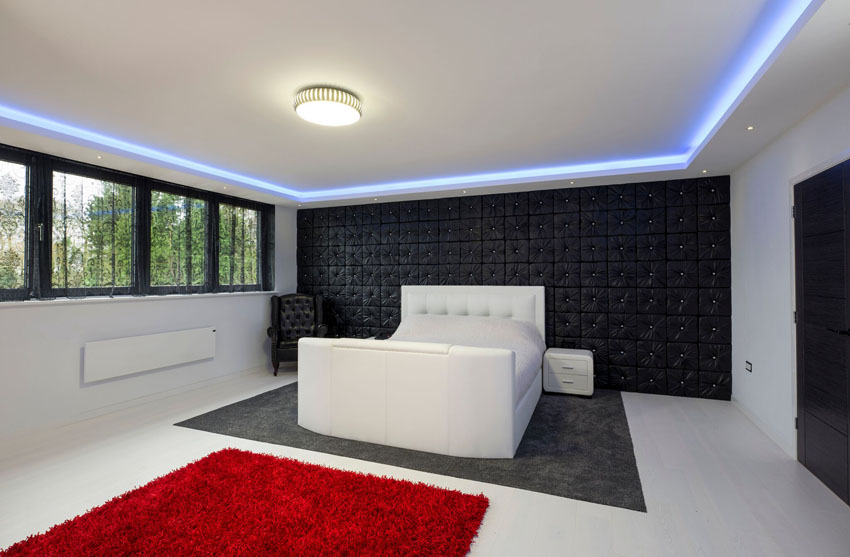

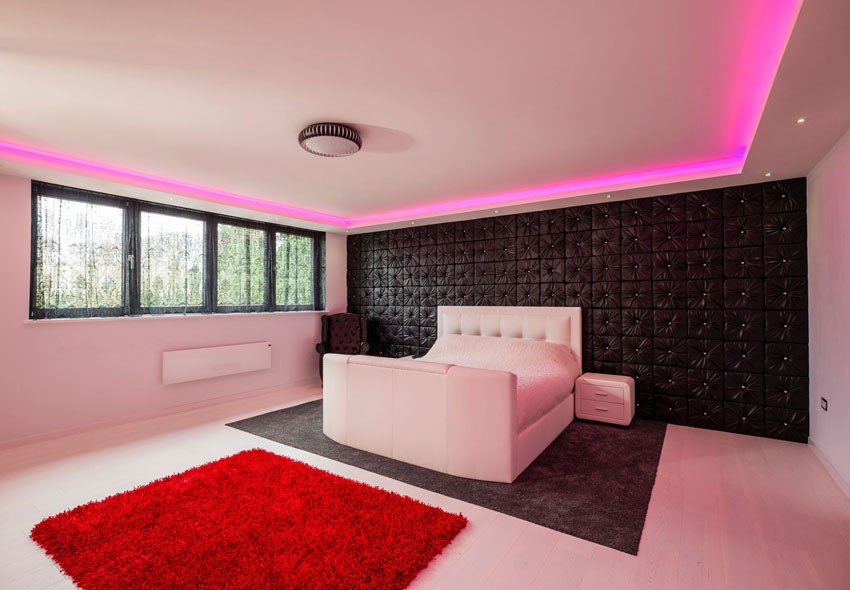

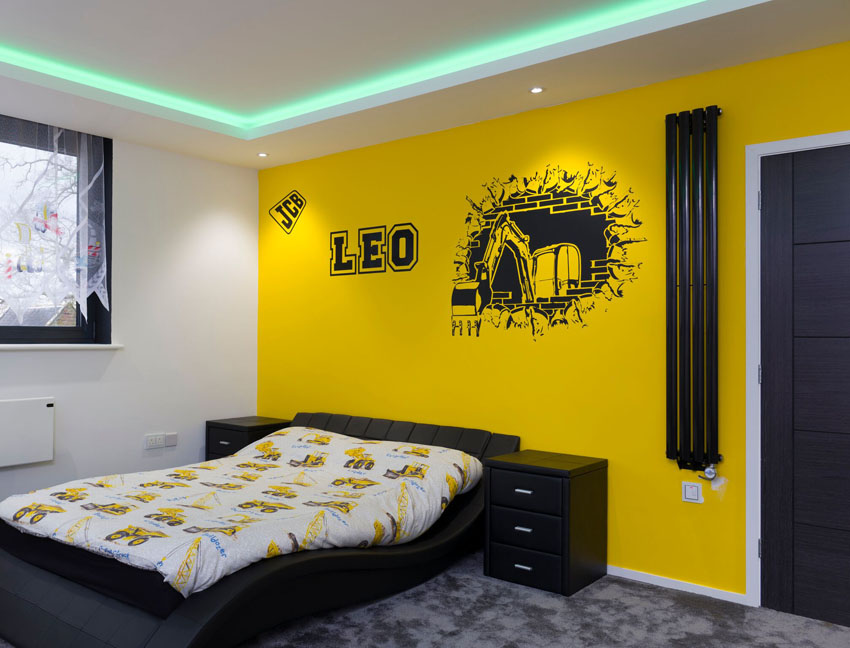

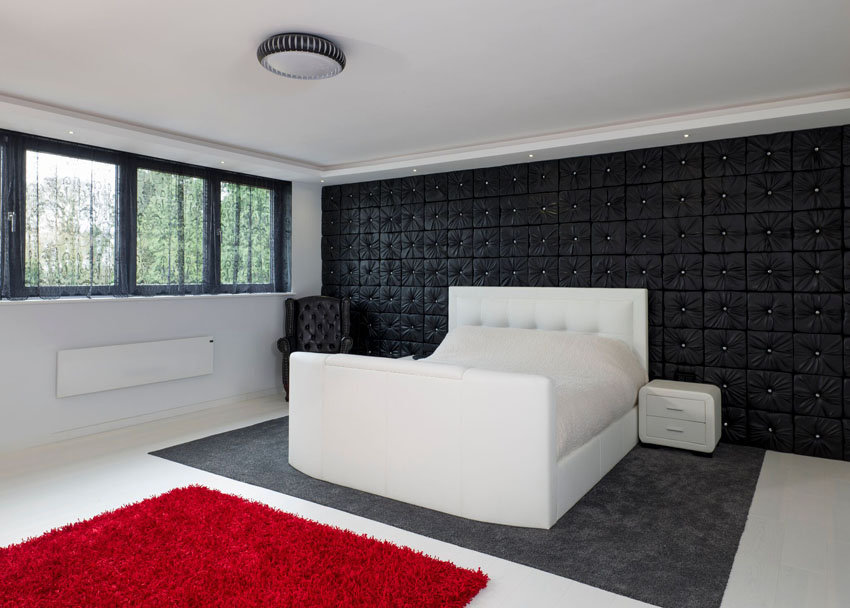

Nick fitted colour-change LED lights in the family bedrooms.
Mounted in the rooms’ covings, these 10-watt RGBW LED strips can mix a spectrum of colours and shades via an InStyle remote controller to give each room its own character.

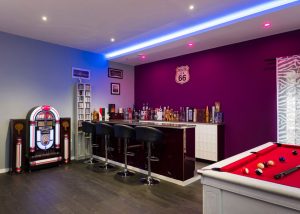

RBGW LED strips were installed downstairs as well, adding some extra colour in the games room.
Downlights

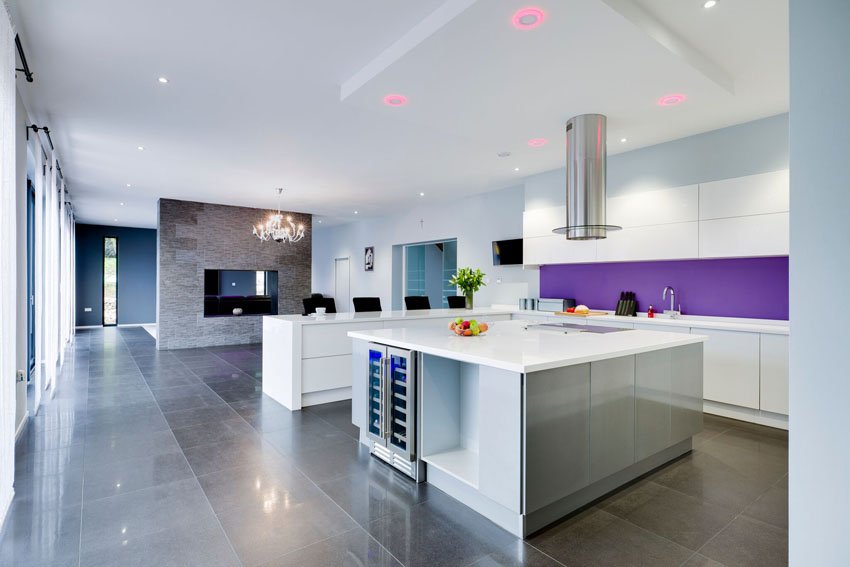

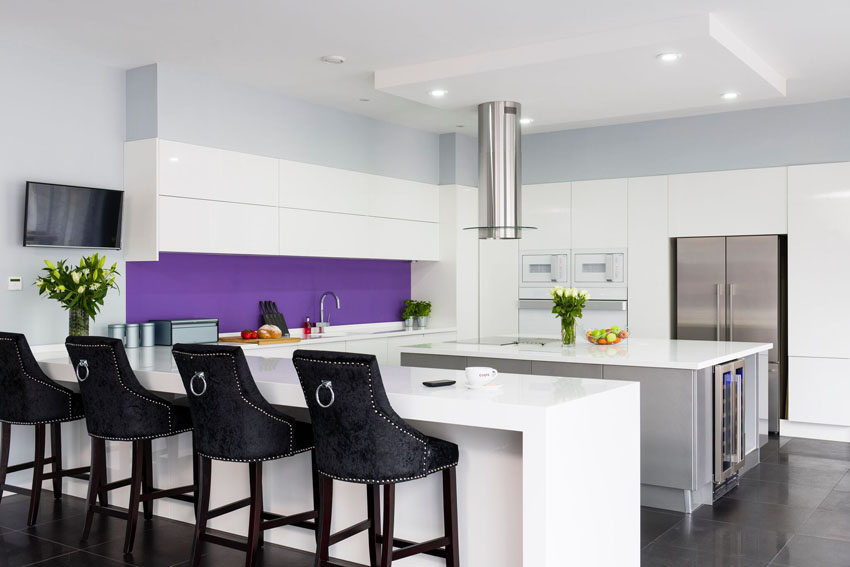

A set of 12-watt RGBW LED downlights provides feature lighting for the sleek kitchen-diner.
Wired just like the RGBW LED strips (using standard 0.75mm 5-core cable) and managed by the same handy remote, they can produce crisp, clear white light when working, or any colour of mood lighting.
Products used in this LED project
This residential installation includes the following InStyle LED products:
- 60 metres 10-watt 12V RGBW LED tape (pure white option, approximately 5,500K)
- 20 metres 5-watt 12V white LED tape (pure white)
- 12-watt RGBW LED downlights (pure white option)
- Receivers: 3x 4-channel RGBW LED receivers
- Power supplies: 1x 200W IP67 (waterproof) LED driver, 2x 60W LED drivers, 2x 150-watt LED drivers
- Dimmers/controllers: 3x wall-mounted LED rotary dimmer & 1x colour-change LED multizone remote control
