A brilliant reception

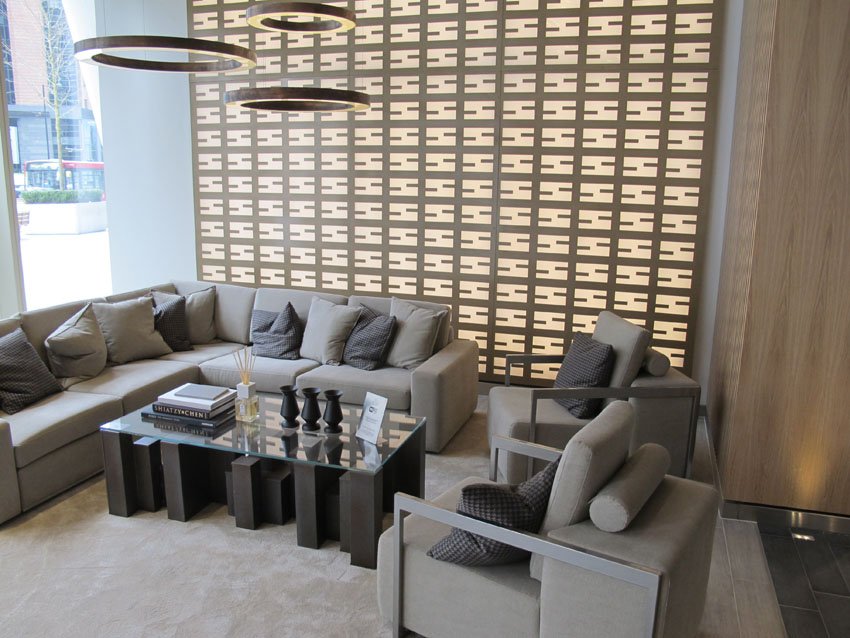

[/fusion_title][fusion_text]This brilliant business reception-area backlight panel, built around InStyle’s popular RGBW LED light strips, was constructed and installed by Pixellent Display Systems of Sidcup.

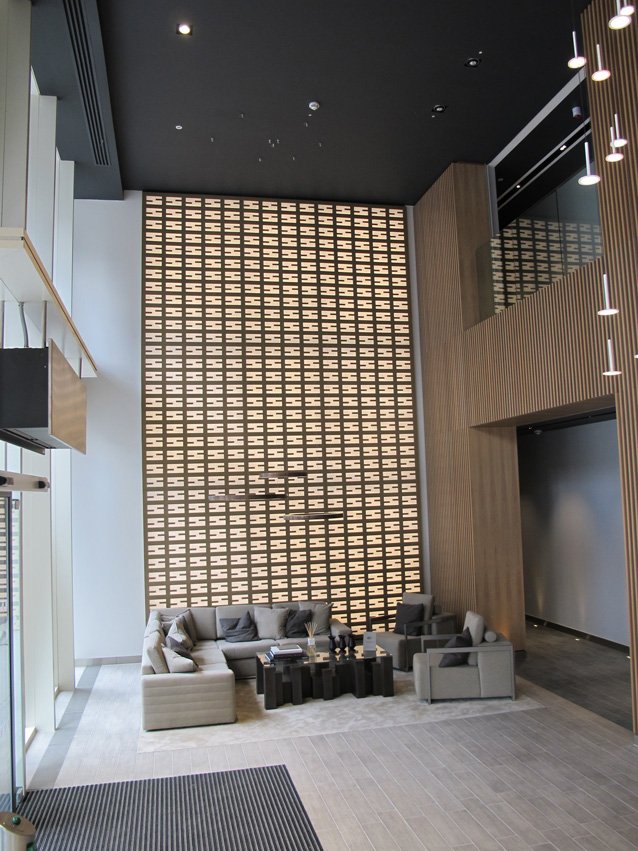

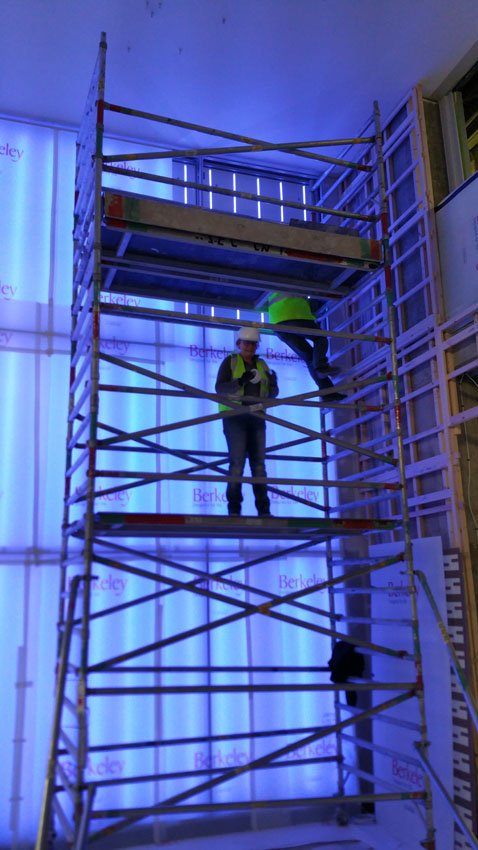

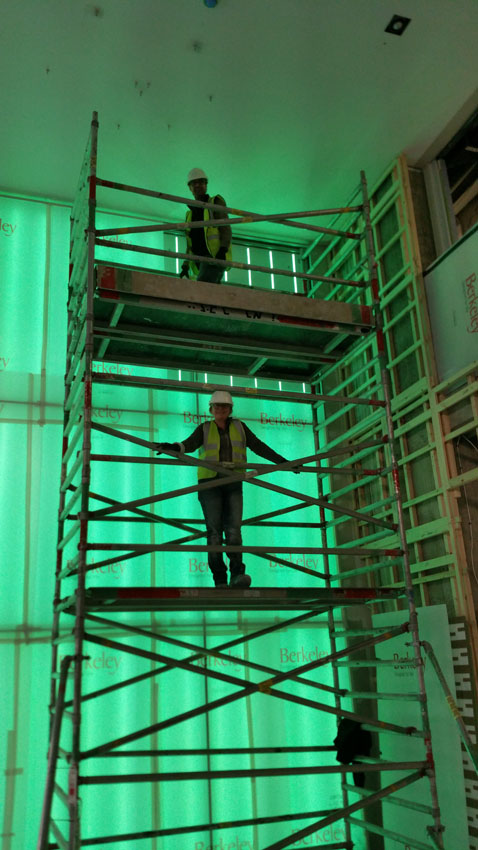

[/fusion_text][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container hundred_percent=”yes” overflow=”visible” type=”flex”][fusion_builder_row][fusion_builder_column type=”1_3″ layout=”1_3″ last=”false” hover_type=”none” border_position=”all” background_blend_mode=”overlay” first=”true”][fusion_text][/fusion_text][/fusion_builder_column][fusion_builder_column type=”2_3″ layout=”2_3″ last=”true” hover_type=”none” border_position=”all” background_blend_mode=”overlay” first=”false”][fusion_text]The nine LED light panels are all separate units. Each one is a 3mm aluminium sheet, waterjet cut and powder coated, bonded to 5mm opal acrylic. The full installation stands a mammoth 6.3 metres in height – Matt at Pixellent described the installation of the three upper panels as an ‘interesting’ challenge!

[/fusion_text][fusion_builder_row_inner][fusion_builder_column_inner type=”1_2″ layout=”1_2″ last=”false” hover_type=”none” border_position=”all” background_blend_mode=”overlay” first=”true”][fusion_text][/fusion_text][/fusion_builder_column_inner][fusion_builder_column_inner type=”1_2″ layout=”1_2″ last=”true” hover_type=”none” border_position=”all” background_blend_mode=”overlay” first=”false”][fusion_text][/fusion_text][/fusion_builder_column_inner][/fusion_builder_row_inner][/fusion_builder_column][fusion_builder_column type=”2_3″ layout=”2_3″ last=”false” hover_type=”none” border_position=”all” background_blend_mode=”overlay” first=”true”][fusion_text]Pixellent used a massive 90 metres of 20-watt RGBW LED tape to create this project. (For the white LED chips, they chose a warm-white light tone – around 2700 Kelvin, very similar to traditional incandescent lighting.) InStyle supplied the tape pre-cut and pre-soldered into 42 equal lengths (2.1m each), each with an additional 1m starter-lead for ease of connection.

Each LED light panel has its own power supply and receiver housed inside – so that’s 9 x 320-watt Meanwell transformers (IP65-rated) and 9 x wireless multichannel receivers, all managed remotely by one of our hand-held 8-zone LED controllers.

“Everything was spot on,” says Matt, “and everybody says how good it looks.”

Pixellent Display Systems supply, install and support lighting and electronic displays – everything from small specialist displays for a single room to giant high-profile screens for public buildings and sports stadiums. You can see them at work in Europe, Asia, Australia, the Middle East and America.[/fusion_text][/fusion_builder_column][fusion_builder_column type=”1_3″ layout=”1_3″ last=”true” hover_type=”none” border_position=”all” background_blend_mode=”overlay” first=”false”][fusion_text]
